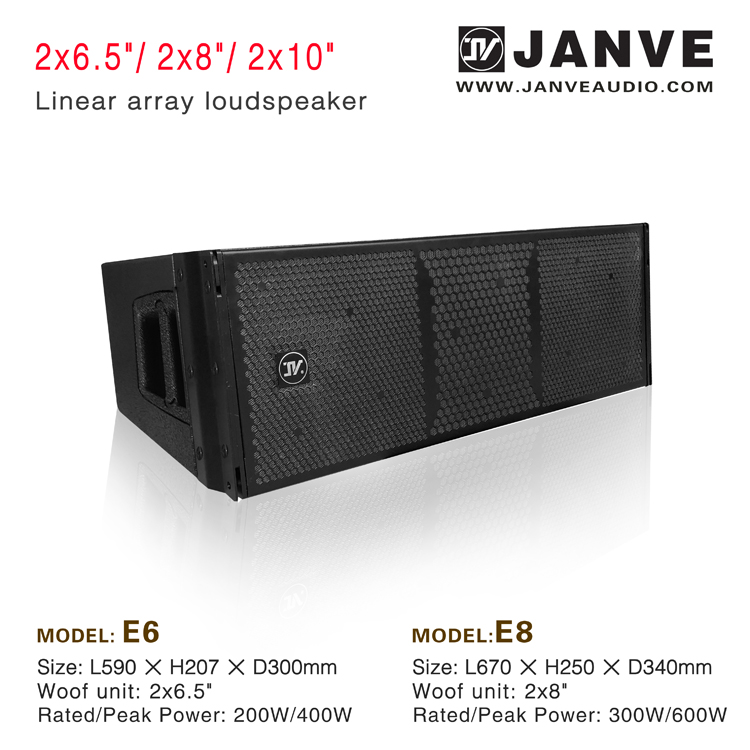

E6/Dual 6.5” Linear Array Speaker
· Applicable to: indoor (performance, conference) speaker system. · The tweeter uses a composite membrane compression driver, and the bass uses a high-power unit. The speaker adopts a built-in two-way frequency design, which is convenient for on-site operation and system link. The speaker has the characteristics of long projection, high sensitivity and strong penetration, and even sound coverage between areas. · Unique integrated cabinet design, combining multiple speakers to form a large sound system.
| Dual 6.5“/Dual 8"/Dual 10" Linear Array Speaker | |||||
| Product name | Model No. | Power | Range of use | unit | parameter |
| Dual 6.5 inch Linear Array Speaker | E6 | 200W | Lecture hall, conference hall, multi-function hall, school, banquet hall, hotel lobby, etc. | pcs | · Type of equipment: dual 6.5 inch full frequency line array speakers · Rated / peak power: 200W / 400W · Characteristic sensitivity: 100dB / W / m · Output sound pressure level: 126dB / W / m ~ 132dB / W / m · Rated frequency range: 70 ~ 20KHz · Speaker unit: LF: 6.5 "× 2; HF: 1.75" · Dimension (Length * Height * Depth): 590 * 207 * 300mm |
| Dual 10 inch subwoofer line array | E6-210S | 400W | pcs | · Type of equipment: dual 10 inch subwoofer line array speakers · Rated / peak power: 400 W / 800W · Rated impedance: 4Ω · Characteristic sensitivity: 100 dB / W / m · Output sound pressure level: 129dB / W / m ~ 135dB / W / m · Rated frequency range: 40 ~ 260Hz · Dimension (L * H * D): 590 * 300 * 415mm | |
| Dual 6.5-inch linear array supporting customized field brackets and other hanging pieces (one set in a string) | set | ||||
| Dual 8" Linear Array Speaker | E8 | 300W | pcs | · Type of equipment: dual 8-inch full-frequency linear array speakers · Rated / peak power: 300W / 600W · Characteristic sensitivity: 100dB / W / m · Output sound pressure level: 126dB / W / m ~ 132dB / W / m · Rated frequency Range: 70 ~ 20KHz · Speaker unit: LF: 8 "× 2; HF: 1.75" · Size (L * H * D): 670 * 250 * 340mm | |
| Dual 12" Linear Array Subwoofer | E8-212S | 600W | pcs | · Type of equipment: dual 12-inch subwoofer line array speakers · Rated / peak power: 600 W / 1200W · Rated impedance: 4Ω · Characteristic sensitivity: 103 dB / W / m · Output sound pressure level: 129dB / W / m ~ 135 dB / W / m · Rated frequency range: 40 ~ 260Hz · Size (length * height * depth): 670 * 370 * 480mm | |
| Dual 8-inch linear array supporting customized field brackets and other hanging pieces (one set in a string) | set | ||||
| Dual 10 inch full frequency line array | E10 | 500W | pcs | System type: Two-way passive line array speaker Unit configuration: LF: 2 × 10 "HF: 1.75" Frequency response (–5dB): 60 Hz-19KHz Power: LF: 500W / HF: 100W Nominal impedance: 4Ω Sensitivity (1M / 1W): LF: 97dB / HF: 110dB Maximum sound pressure level: LF: 129dB / HF: 135dB Overlay angle: 100 ° × 10 ° Connection method: 2 × NL4 Hanging parts: special supporting hanging parts Box material: plywood Surface treatment: black paint Mask: spray hardened steel mesh (high density moisture-proof mesh) Size (length * height * depth): 860 * 310 * 420mm | |
| Double 12 inch subwoofer line array | E10-212S | 600W | pcs | System type: one passive line array subwoofer Unit configuration: LF: 1 × 18 "high power unit Frequency response (–5dB): 40 Hz-200Hz Rated / peak power: 700 W / 1400W Nominal impedance: 8 Ω Sensitivity (1M / 1W): 103 dB Maximum sound pressure level: 135 dB Connection method: 2 × NL4 Hanging parts: special supporting hanging parts Box material: plywood Surface treatment: black paint Mask: spray hardened steel mesh (high density moisture-proof mesh) Cabinet size: width 720 * length 860 * height 540mm | |
| Dual 10-inch linear array supporting custom-made field frame and other hanging pieces (one set in a string) | set | ||||
